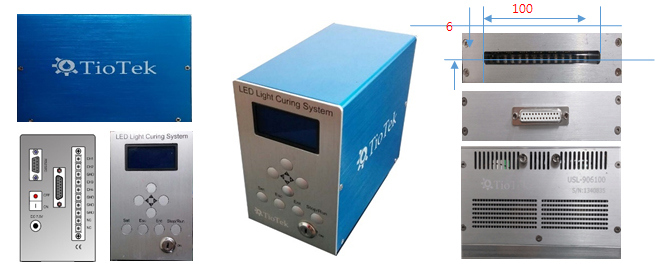

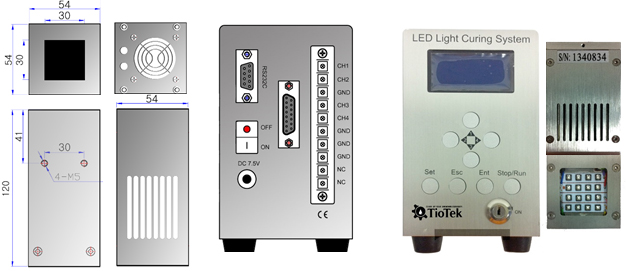

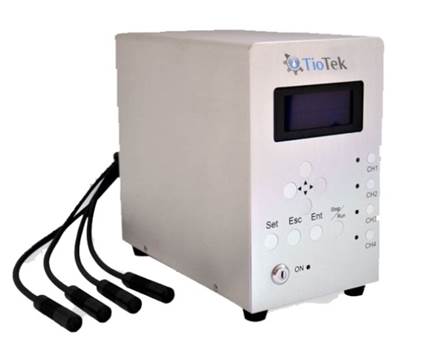

UV LED CURING SYSTEM
Spot System - ULS-104C
This product is a light source for ultraviolet light output using UV-LED for the light output source.
The UV-LED included in the LED Head Unit outputs the light which is then applied to any place as desired.
This equipment consists of the optical system including UV-LED with exchangeable condenser lens and controller.
UV output can be executed by using the control switches or external control signals.
ULS-104C 본 제품은 LED 365nm 파장에서 405nm 파장의 다양한 파장대를 제공하며,
광출력값을 소비자 요청에따라 용이하게 컨트롤 가능한 제품입니다.
3파이에서 12파이까지 다양한 포커싱이 가능하며 이격거리에 상관없이 광출력값을 다양하게 조절, 시간 컨트롤이 가능하며
하나의 콘트롤러로 1CH에서 8CH까지 폭넓은 확정이 가능한 제품입니다.

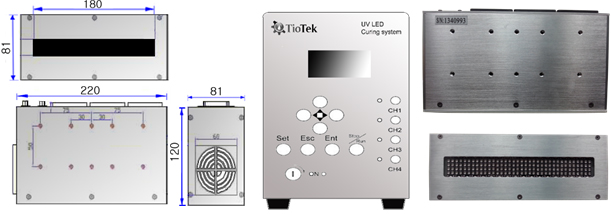

UV LED BAR SYSTEM – ULS-93030
ULS-93030 UV LED BAR SYSTEM included in the LED Head Unit outputs the light which is then applied to any place as desired.
ULS-93030 consists of the optical system including UV-LED with exchangeable Square lens and controller.
ULS-93030 본 제품은 면발광 타입으로 300 X 300 사이즈로 개별 LED ON/OFF 가 가능, 개별 광출력 값 및 시간 컨트롤 역시 조정 가능한 제품입니다.
▶ LED 250nm ~ 480nm 파장
▶ 다양한 광출력 가능
▶ 고정된 위치에서 LED LINE ON/OFF 가능
SPECIFICATIONS
- · Emits nearly monochromatic light, wavelength is selectable from 250 to 480nm
- · Excellent and stable UV irradiation performance LED for thermal distortion-less
- · Energy efficiency and environment friendliness
- · Irradiation intensity and time are adjustable
- · With RS232 and other communication interface
- · Irradiate head can single or units controlled
- · Light intensity uniformity: < 10%
- · Custom-made according to the specifications

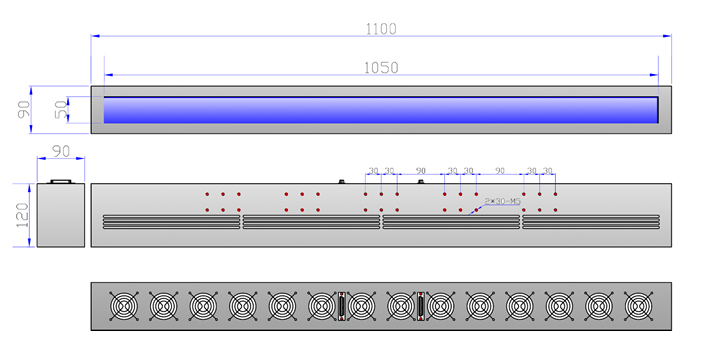

UV LED BAR SYSTEM – ULS-620180
UV LED BAR SYSTEM – ULS-906100
UV LED BAR SYSTEM – ULS-651050
UV LED 356nm LIGHT SOURCE
- · Emits nearly monochromatic light, wavelength is selectable from 250 to 480nm
- · Excellent and stable UV irradiation performance LED for thermal distortion-less
- · Energy efficiency and environment friendliness;
- · Irradiation intensity and time are adjustable
- · With RS232 and other communication interface
- · Irradiate head can single or units controlled
- · Light intensity uniformity: < 10%
- · Custom-made according to the specifications
NO HARMFUL THERMAL EFFECTS
- · Emits nearly monochromatic light, wavelength is selectable from 250 to 480nm
- · Excellent and stable UV irradiation performance LED for thermal distortion-less
- · Energy efficiency and environment friendliness;
- · Irradiation intensity and time are adjustable
- · With RS232 and other communication interface
- · Irradiate head can single or units controlled
- · Light intensity uniformity: < 10%
- · Custom-made according to the specifications

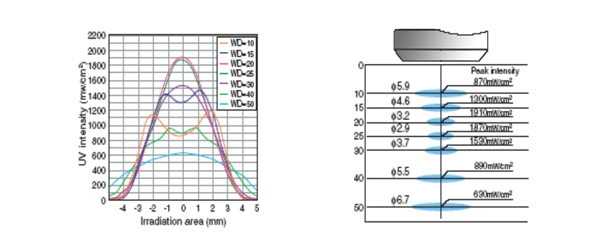

TYPICAL CHARATERISTICS
UV 사이드 접착제
