UV 광량 측정기

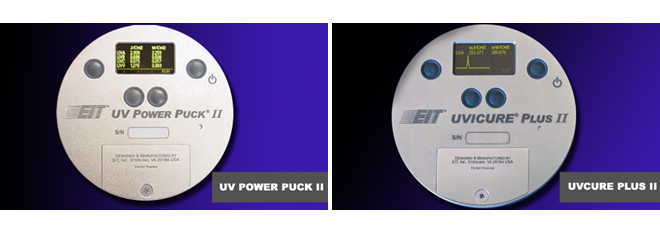

EIT UVICURE PLUS II, Portable UV Radiometer
| Technical Specification | |
|---|---|
| UV POWER PUCK® II : UVA(320~390nm), UVA2(380nm~410nm), UVB(280~320nm), UVC(250~260nm), UVV(395~445nm) 5개 영역 중 4개 영역 측정용 선택하여 구매. UVICURE®Plus II : UVA(320~390nm),UVA2(380nm~410nm), UVB(280~320nm), UVC(250~260nm), UVV(395~445nm) 5개 영역 중 1개 영역 측정용 선택하여 구매. |
|
| Suggested Operating Rage | Standard high range version : UVA, UVA2, UVB, UVV - 100mW/㎠~10W/㎠ UVC : 10mW/㎠~1W/㎠ |
| Mid-range version : UVA, UVA2, UVB, UVC, UVV : 10mW/㎠~1W/㎠ UVC : 1mW/㎠~100mW/㎠ | |
| Low power version : UVA, UVA2, UVB, UVC, UVV : 1mW/㎠~100mW/㎠ UVC : 1mW/㎠~100mW/㎠ | |
| Accuracy | +/- 10%; +/-5% Typical |
| Spectral Ranges (UV Power Puck®II) | 4-channel continuous monitoring. Standard version: 320-390nm(UVA), 280-320nm(UVB), 250-260nm(UVC), 395-445nm(UVV) / UVA2 version: 380-410nm (UVA2 replaces the UVC band) |
| Spectral Ranges (UVICIRE® Plus II) | 1-channel continuous monitoring. Standard version: 320-390nm(UVA), 380-410nm (UVA2 for LED monitoring and additive bulb monitoring) 280-320nm(UVB), 250-260nm(UVC), 395-445nm(UVV) |
| Operating Temperature | 0-75℃ Internal temperature; tolerates high external temperatures for short periods (audible alarm indicates when temperature has exceeded tolerance) |
| Battery | Two user-replaceable AAA alkaline Cells |
| Dimensions | 4.60 x 0.50 inches; 117mm x 12.7mm (D x H) |
